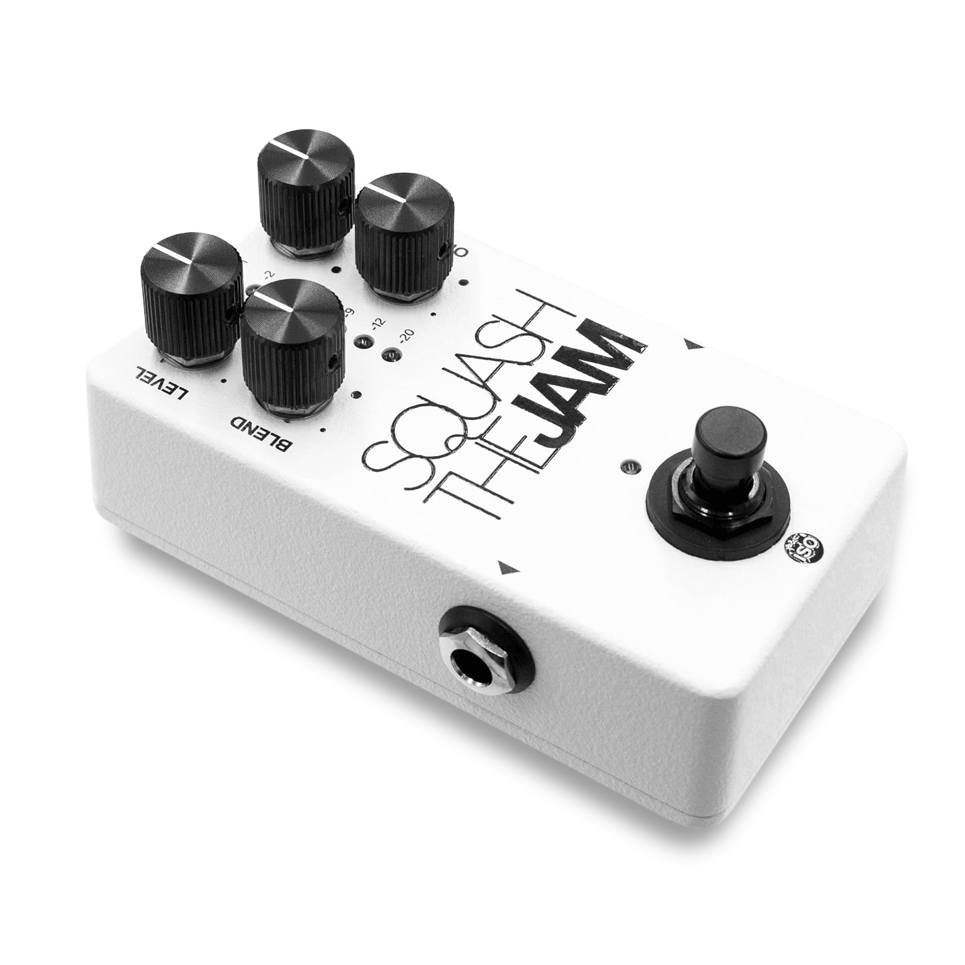

Squash The Jam
Squash The Jam is our modern, small form factor approach to feedforward signal compression.
Our compressor incorporates high performance Blackmer® Voltage Controlled Amplifier (VCA) with a full frequency,
true RMS level detector, resulting in super transparent and extremely accurate compression across a broad range of material.
With precise LED metering, around 20dB of makeup gain and auto-timing that works in conjunction with your input style, Squash The Jam is designed to provide you with fast results, anywhere in your signal chain, for the least amount of fuss.
Limited-time introductory offer!
With precise LED metering, around 20dB of makeup gain and auto-timing that works in conjunction with your input style, Squash The Jam is designed to provide you with fast results, anywhere in your signal chain, for the least amount of fuss.
Limited-time introductory offer!
User Manual
Download the User ManualSpecifications
- Blackmer® Voltage Controlled Amplifier (VCA) with True RMS-Level Detector
- Level: -20dB to +20dB, includes internal trimpot for makeup gain fine-tuning
- Threshold: -40dBu to +20dBu
- Blend: Wet to dry parallel mix
- Ratio: 1:1 to INF:1 (limiting) Compression Ratio
- Metering: -1dB to -20dB Compression Range
- True or buffered bypass options via internal DIP switch
- Input Impedance: 620kΩ @ 1kHz
- Output Impedance: 1kΩ @ 1kHz
- Power: 9V DC* 2.1mm (centre negative), ~53mA
- Dimensions: 112mm x 68mm x 49mm * Power supply not included. No batteries.
